TDD-IPC-67S_TDDTOUCH_Industrial Box PCs

Overview

The TDD Industrial Box PCs include Windows and Android types, deliver a great computing solution when your application requires the PCs to be integrated into equipment. It can withstand harsh industrial environment with multiple I/O & expansion slots, rugged internal components & fanless cooling systems. Powered by Android or Intel with heavy-duty aluminum or steel enclosure, high durability & versatility for Kiosks applications from Self-service, Automated Parking, Industrial Automation, Outdoor Control, Healthcare to Gaming.

Features

● Integrated with Intel® J1900 / J4125 Quad Core 2.0 / 2.7GHz / Intel® Core™ i3 / i5 / i7 / i9 4-13th G

● Small size & light weight with mounting racks, easy for installation

● Supports DDR4 ECC 2133/2400MHz, up to 64G

● Supports onboard eMMC and 1x 2.5 inch storage

● Supports 1*HDMI, 1*VGA dual display

● Supports 2*LAN, 8*USB

● Wide range DC 9~36V Input (optional)

● Fanless aluminum case with copper tube

Specifications

Case Color	Silver(color can be customized)
Material	Aluminum Alloy
CPU	Intel® J1900 / J4125 Quad Core 2.0 / 2.7GHz / Intel® Core™ i3 / i5 / i7 / i9 4-13th G
Chipset	Adopt Intel express chipset
RAM	2xSODIMM DDR4 2133/2400MHz Memory slots,up to 64GB
Storage	1SATA, 1MSATA, 1*M.2
Audio	Integrated Realtek ALC662/660/892/887 6 sound channel, support MIC line-out
Display Interface	1HDMI2.0,1HDMI1.4,1*VGA triple display
Display	Integrated Intel HD Graphic card, support 1VGA, 1HD, 1*LVDS display input
I/O	USB	2USB2.0/2USB3.0(optional for 6/8/10)
	COM	6*COM(RS232/485), optional for 2 / 4
	Line In/Out	1
	LAN	2*Intel lan(optional for 2)
	WIFI Antenna	Optional
	MIC / Audio	1 / 1
	GPIO / LPT	Optional
Network Card	1*RTL8111H 1000M(optional for Intel) lan, support wake on lan
Expansion	2*mini-PCIE, support Wifi/3G/4G/5G module
Watch Dog Timer	Support
Power	Supply / Consumption: 100-240 VAC / 12VDC(optional for 9-36V) +/- 5%; 35W
Operating System	Windows /7/8/10, Linux
BIOS	AMI BIOS, ACPI supported
Working Temperature	-20°C - 60°C
Working Humidity	0% - 95% relative humidity, non-condensing
Mechanical	Product Dimensions: 185x164.3x66.1mm / Weight (Unpacked/Packed): 1.8 / 2kg Box Dimensions: 206x204.3x143.1mm/VESA Mounting bracket, DIN rail(optional)
Others	MTBF/Warranty/Enclosure Color: 50,000 hours demonstrated / 1-year / silver \| black Ready for Use: 24/7

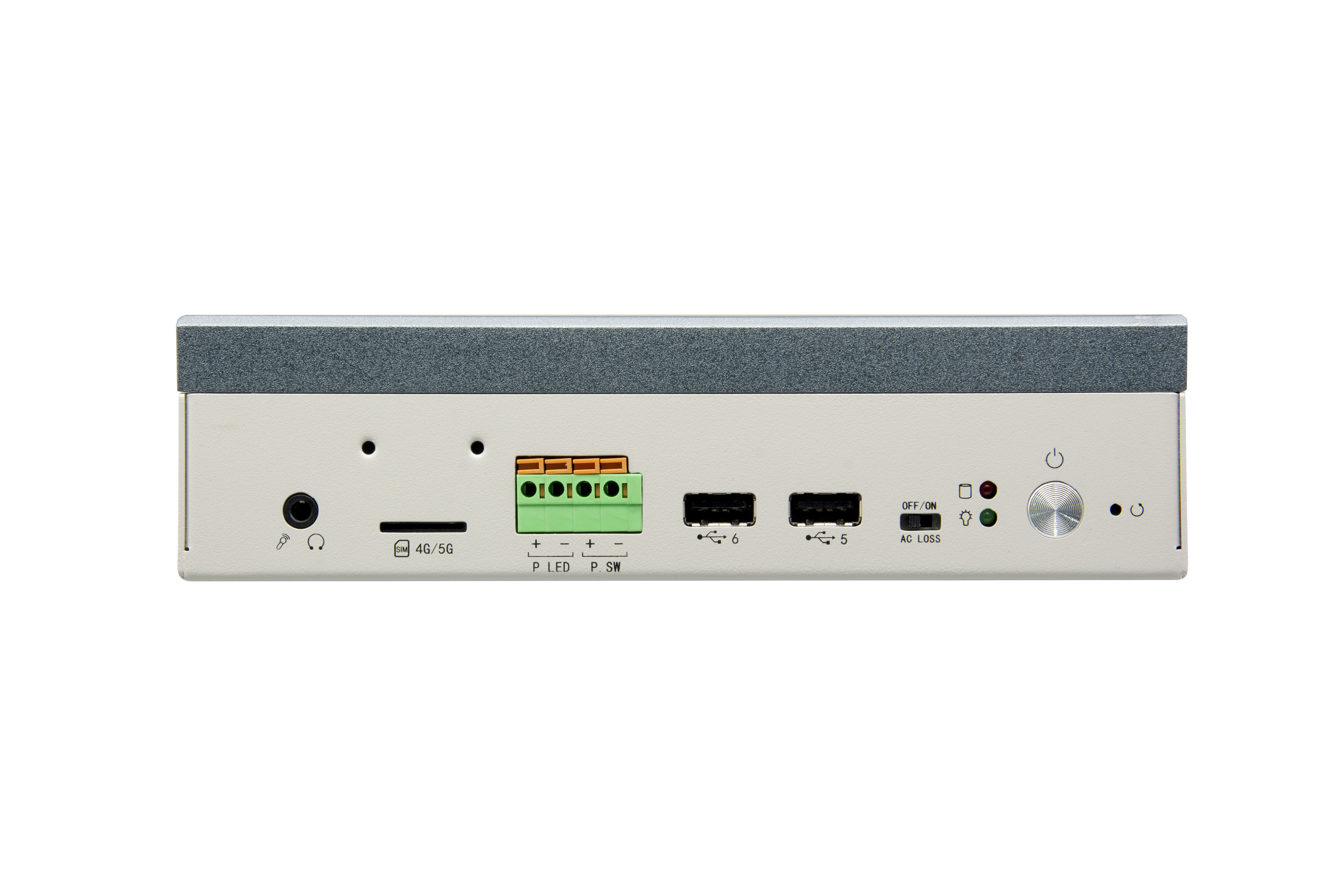

Default Interface

USB2.0 x2 / USB3.0 x2 / COM x6 / VGA x1 / HDMI x2 / LAN x2 / WIFI x1/DC x1/Audio x1/Mic x1/DIN Rail x1

Download

2-TDD-IPC-67S Spec-2408.pdf
