TDD-IPC-3566H
Industrial Box PCs

    ● Integrated with Rockchip RK3566/3568/3288/3399 Quad-core Cortex-A55/17/17/72 1.8/2.0/1.8/1.8GHz

    ● Fanless, small form factor, VESA-ready

    ● 1/2(std)/4/8/16GB RAM, 4/8/16(std)/32/64/128GB eMMC Flash, expandable via TF card(up to 256G)

    ● Supports 1*HDMI, 1*VGA dual display (optional)

    ● Supports 1/2*LAN, 4/6*USB

    ● Internet, WIFI, BT, 4G (optiona), Headphone, MIC

    ● Wide range DC 9~36V Input (optional)

    ● High-quality steel / pure aluminum fanless case


Contact us

+86 755 8672 4815

sales@tddtouch.com

+8615002067862

Get a Quote
    Overview

    The TDD Industrial Box PCs include Windows and Android types, deliver a great computing solution when your application requires the PCs to be integrated into equipment. It can withstand harsh industrial environment with multiple I/O & expansion slots, rugged internal components & fanless cooling systems. Powered by Android or Intel with heavy-duty aluminum or steel enclosure, high durability & versatility for Kiosks applications from Self-service, Automated Parking, Industrial Automation, Outdoor Control, Healthcare to Gaming.


    Features

      ● Integrated with Rockchip RK3566/3568/3288/3399 Quad-core Cortex-A55/17/17/72 1.8/2.0/1.8/1.8GHz

      ● Fanless, small form factor, VESA-ready

      ● 1/2(std)/4/8/16GB RAM, 4/8/16(std)/32/64/128GB eMMC Flash, expandable via TF card(up to 256G)

      ● Supports 1*HDMI, 1*VGA dual display (optional)

      ● Supports 1/2*LAN, 4/6*USB

      ● Internet, WIFI, BT, 4G (optiona), Headphone, MIC

      ● Wide range DC 9~36V Input (optional)

      ● High-quality steel / pure aluminum fanless case


    Specifications

    Case Color

    Black(color can be   customized)

    Material

    Steel

    CPU

    Rockchip RK3566

    Chipset

    Quad-core   Cortex-A55 1.8GHz

    RAM

    1 / 2(std) / 4/ 8 / 16GB

    Storage

    4 / 8 / 16(std)  / 32 /64 / 128GB

    KIO

    6-way   GPIO(optional)

    Display Interface

    1*HDMI

    Display

    1920*1080(HDMI   1.4) / 4K (HDMI 2.0)

    I/O

    USB Host / OTG

    3*USB2.0 & 1*USB3.0 / 1-way MicroUSB   OTG

    COM

    2*COM(1*RS232 & 1*RS485)

    TF   / SIM Card

    1,   up to 128G / 1, 1-way Nano-SIM

    LAN

    1,   1-way 10/100/1000Mbps

    WIFI |   Bluetooth

    1,   802.11b/g/n | 1, V5.2

    Headphone/Audio

    1 way   left & right channel

    GPIO / LPT

    Optional

    Network Card

    1*RTL8111H 1000M(optional for Intel) lan, support wake on   lan

    Expansion

    1*4G, 1-way PCIe expansion

    Accessories

    HOST   x1, WIFI ANT x1, Hanging ears x1, Power Adapter x1, HDMI HD Cable x1

    Power

    100-240 VAC/9-15VDC; 2.25W typical, 0.42W standby, 12W Max

    Operating System

    Android   (11), Linux

    Button

    Reboot

    Working Temperature

    -20°C - 70°C

    Working Humidity

    0% - 95% relative   humidity, non-condensing

    Mechanical

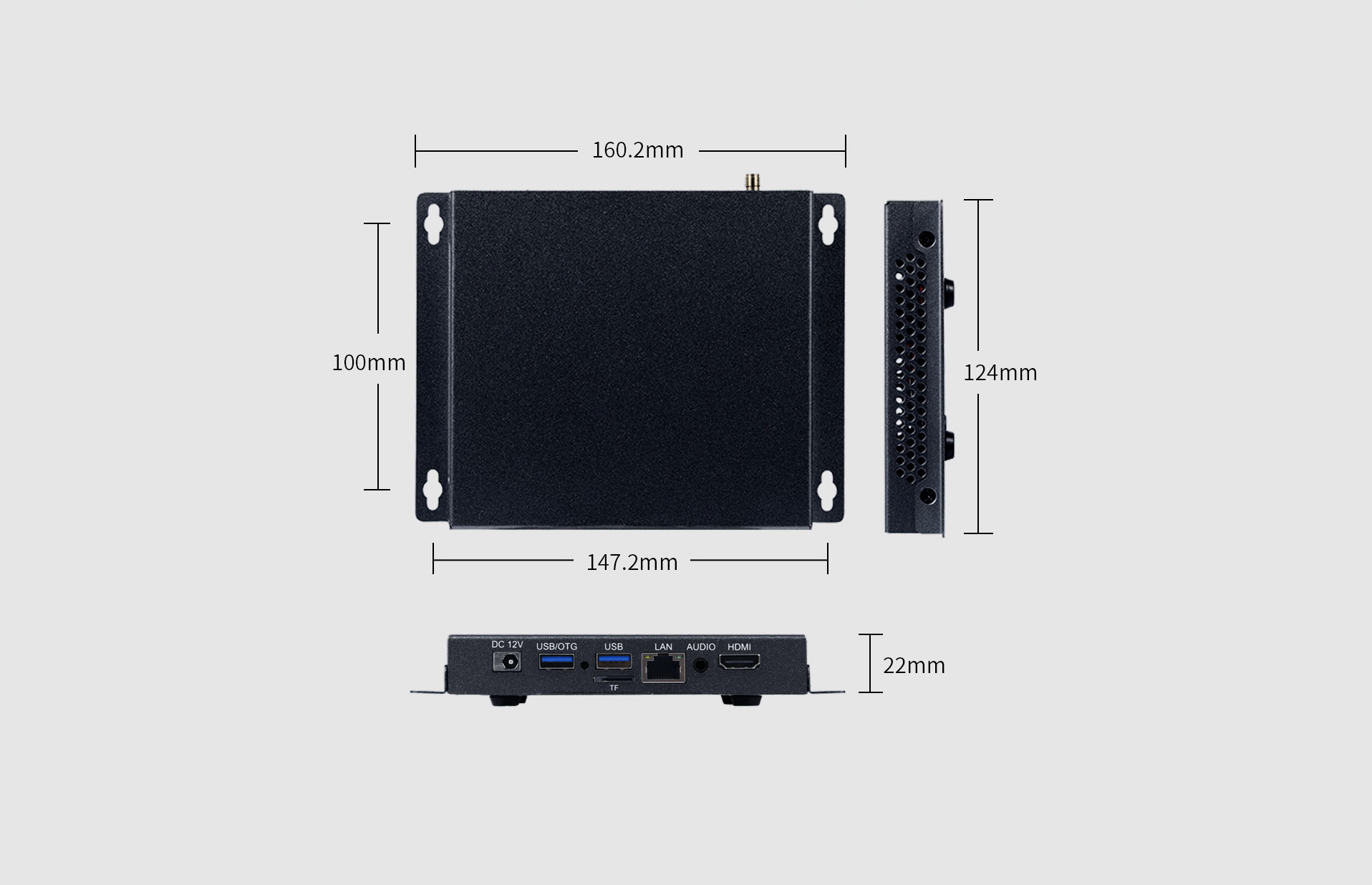

    Product Sizes: 147.2x124x22mm/Weight(Unpack/Pack): 0.5/1.05|5/12.7kg(1|10pcs)

    Box Dimensions: 185x175x75|450x460x340mm(1|10pcs)/VESA   Mounting bracket

    Others

    MTBF/Warranty/Enclosure   Color: 50,000 hours demonstrated / 1-year / black | silver

    Ready for Use:   24/7

    Default Interface

    USB2.0 x3 / USB3.0 x1 / COM x2(RS232 x1+RS485 x1) / HDMI x1 / LAN x1 / WIFI x1 / DC x1 / TF-CARD x1 / Audio x1
