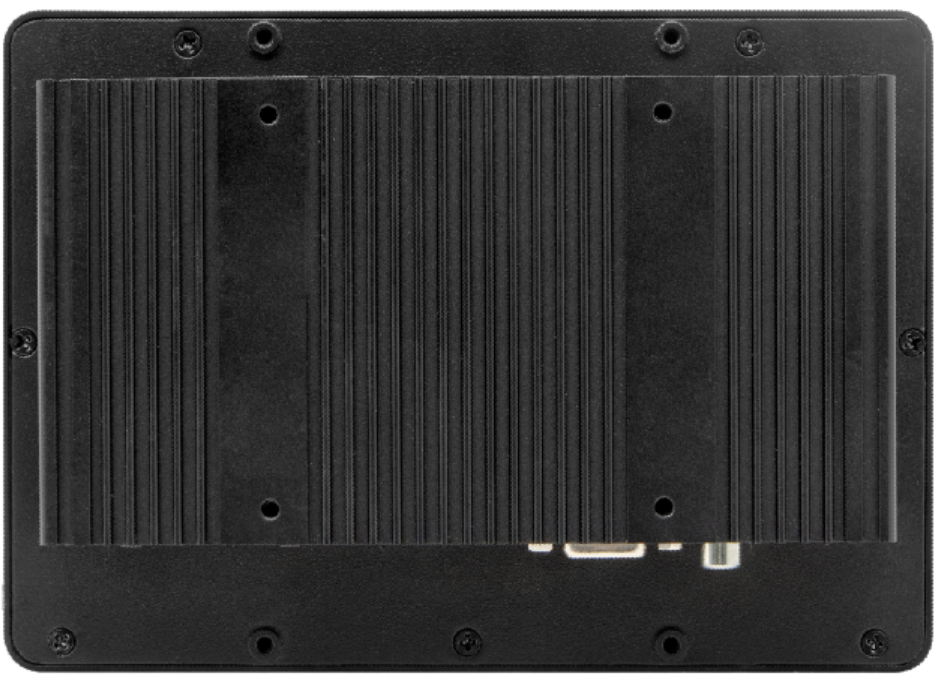

TDD-TPC-BF7H
7’’ Bezel-free (Rear Mount) Open Frame PCAP Touch Panel PCs

    ● Touch thru glass enabled with PCAP supports thickness up to 5mm

    ● Embedded design with Steel Frame & Light Aluminum Back enclosure

    ● IP65 (front) for water and dust protection, flexible mounting in any table, kiosk, or cabinet design

Contact us

+86 755 8672 4815

sales@tddtouch.com

+8615002067862

Get a Quote
    Overview

    The TDD Touch Panel PCs include Standard, Industrial (Open Frame Bezel-free | Rear Mount, Panel Mount, Closed Frame), Outdoor, Waterproof, Stainless Steel, Marine, Curved, Desktop POS, Commercial Displays, Medical and Custom types, deliver a great computing solution when your application requires the PCs to be integrated into equipment. It can withstand harsh industrial environment with multiple I/O & expansion slots, rugged internal components & fanless cooling systems. Powered by Android or Intel with heavy-duty aluminum or steel enclosure, high durability & versatility for Kiosks applications from Self-service, Automated Parking, Industrial Automation, Outdoor Control, Healthcare to Gaming.

    Features

      ● Touch thru glass enabled with PCAP supports thickness up to 5mm

      ● Embedded design with Steel Frame & Light Aluminum Back enclosure

      ● IP65 (front) for water and dust protection, flexible mounting in any table, kiosk, or cabinet design

    Specifications

    System

    Processor

    Android:   RK3188/RK3288/RK3566/RK3568 Quad-core Cortex-A9/A17/A55 1.6/1.8/ 2.0GHz

    Memory(RAM)

    Android: 1 / 2GB(std) / 4 / 8 / 16GB

    Storage

    Android: 4/8/16(std)/32/64GB eMMC Flash

    Panel

    Size / Active Area (mm)

    7"(16:9),   17.78cm, Active matrix TFT LCD (LED) / 154.2144 mm x 85.92   mm

    Resolution / Contrast

    1024 x 600 /   600:1

    Viewing Angle

    Horizontal: 75° or   150° total / Vertical: 70°/70° or 140° total

    Color Depth/Brightness

    16.7 million /   600 nits

    Response Time / Freq

    10 (Typ.)(Tr/Td)   ms / Horizontal: 30 - 60 KHz / Vertical: 50 - 75 Hz

    Touch

    Touch Technology / OS

    PCAP (Projected Capacitive)   - 10 Touch Capacity / Windows / Android / Linux / Mac

    Surface Treatment

    Water, Dust   & Vandal proof; Optional: Anti-glare,   Anti-fingerprint, Anti-smudge, Anti-bacterial

    I / O Ports

    Android

    USB x4 / COM x2   / HDMI x1 / LAN x1 / WIFI x1 / DC x1 / TF-CARD x1 / Audio x1

    Power                         Supply / Consumption: 100-240 VAC / 12VDC +/- 5%; 10W typical, 1.2W sleep, 0.5W off

    Mechanical

    Product   Dimensions: 182.5 x 129.5 x 35.3mm / Weight (Unpacked / Packed): 0.7 / 1.26kg     Box Dimensions: 250 x 200 x 70mm / VESA Mounting: 75 x 75 / 100 x 100mm

    Environmental

    Operating / Storage Temperature: -10°C to 50°C / -20°C to 60°C

    Accessories

    Power adapter /   cable, flush mount brackets w/screws (opt.)

    Others

    MTBF / Warranty /   Enclosure Color: 50,000 hours demonstrated / 1-year / black | silver

    Ready for Use:   24/7
