TDD-PTM-C236CAC_TDDTOUCH

Overview

The TDD curved touch monitors (VESA mount) with C-type / J-type format, Non-LED / LED Framed design and desktop / wall mount installation, which provides impressive visual experience with accurate touch response that is attractive and reliable especially for game players. It is available in a wide range of sizes (23.6’’ to 55’’), offering the versatility in the area of gaming, casino and sports betting.

Features

● Touch (optional for no touch) thru glass enabled with PCAP with Customized LED Tiles for casino slot machines

● Comfortable Viewing Experience with R1500 / R1800 Ratio and 2 / 2.5 /4K Resolution with excellent image clarify

● Outstanding Industrial-grade design with High-end Sturdy Steel / Aluminum Frame

Specifications

Panel

Diagonal Size	23.6"(16:9), 59.944cm, Active matrix TFT LCD (LED)
Active Area (mm)	521.395 mm x 293.284mm
Resolution	1920 x 1080
Viewing Angle	Horizontal: 89° or 178° total / Vertical: 89°or 178° total
Number of Colors	16.7 million
Brightness (typical)	250 nits
Response Time-total	10 (Typ.)(G to G) ms
Contrast Ratio	3000:1

Touch

Touch Technology	PCAP (Projected Capacitive) - 10 Touch Capacity
Surface Treatment	Water, Dust & Vandal proof; Optional: Anti-glare, Anti-fingerprint, Anti-smudge, Anti-bacterial
Supported OS	Windows / Android / Linux / Mac

Others Hot-bending process / TP Thickness: 2.55mm (±0.3mm) / Light Transmission: ≥85%

Interfaces / Connectors / Controls

Interfaces&Connectors	VGA x1 / HDMI x1 / USB x1 for Touch / DC x1 / Audio x1; 5 OSD buttons
LED Parameters	RGB colorful effect; atmosphere light mode: solid color, marquee, water, breathing, gradient mode on the Front / Side / Back(with Programmable Controller) - Optional

Power Supply / Consumption: 100-240 VAC / 12VDC +/- 5%; 25W typical, 1.5W sleep, 0.5W off

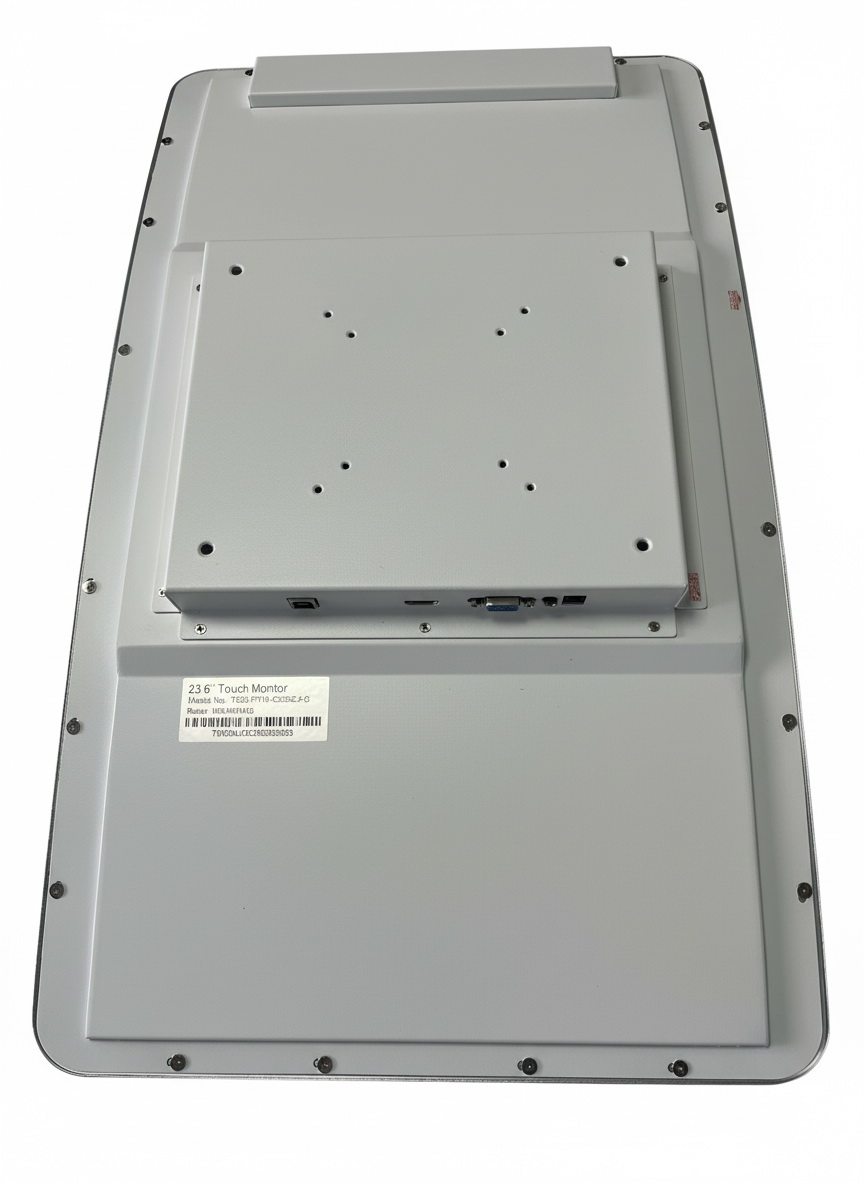

Mechanical	Product Dimensions: 613 x 346.9 x 84mm / Weight (Unpacked / Packed): 8 / 11kg Box Dimensions: 690 x 490 x 210mm / VESA Mounting: 75 x 75 / 100 x 100 / 200 x 200mm
Environmental	Operating / Storage Temperature: -10°C to 50°C / -20°C to 60°C
Accessories	Power adapter / cable, HDMI / VGA / Touch USB cable, VESA mount kits w/screws (opt.)
Others	MTBF / Warranty / Enclosure Color: 50,000 hours demonstrated / 1-year / black \| white Ready for Use: 24/7, Curvature: R1500, with Camera(binocular/2MP/USB/1080P/120° VA)
